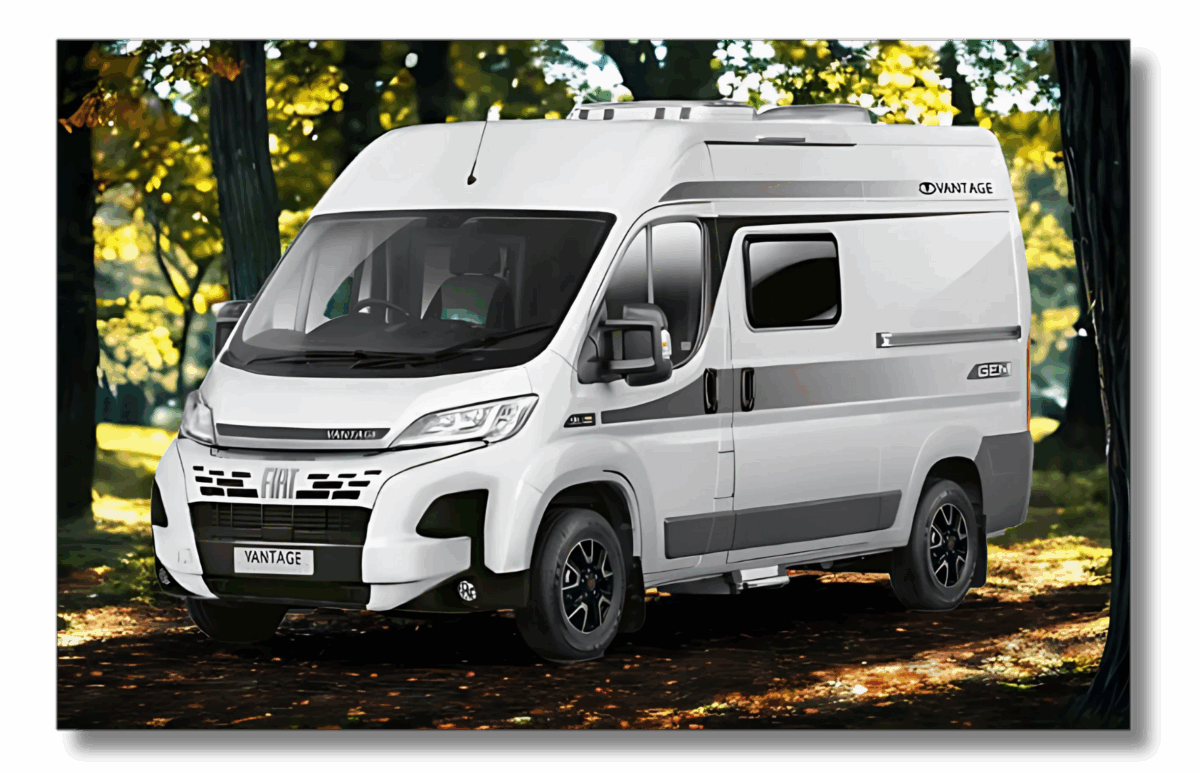

GEM
5.41m (17'9")
While only 5.41m long, you’ll be amazed at how spacious and ‘car-like’ this van conversion feels. It is the smallest of our front lounge layouts, but the GEM still has the luxury feel and appearance of a much larger motorhome. Both seats in the cab area fully swivel to create a comfortable sitting area adjacent to the lounge and sliding door.
In addition to a lounge area that is easily converted to a double bed, this luxury package is completed by a functional washroom and a fully equipped kitchen area. The large low energy fridge freezer, three burner hob and oven, and sink with an inset drainer tray will allow you to bring all the comforts of home with you on your getaways.
Image Gallery

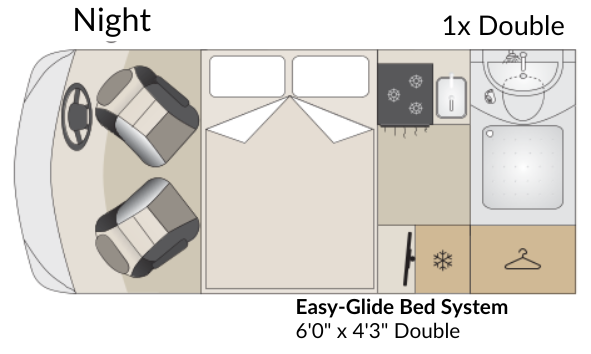

Layouts
Take a Closer Look
KITCHEN AREA

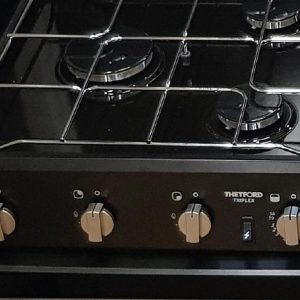

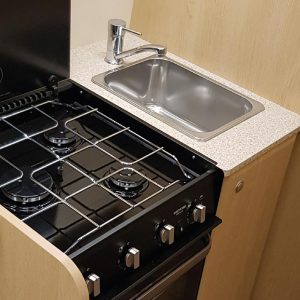

The kitchen has a large low energy fridge freezer, 3 burner hob, oven & grill.

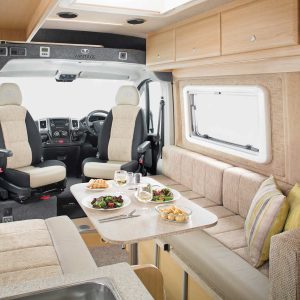

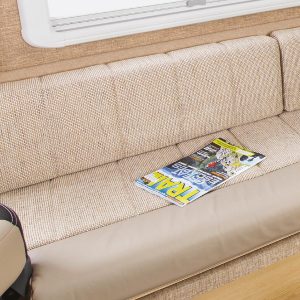

WRAP AROUND LOUNGE

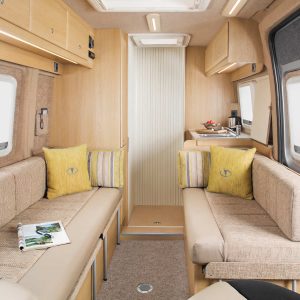

The front lounge area in the Gem is spacious, even after conversion into a double bed it is still leaves access to a user friendly kitchen.
DINING
As well as the front cab area converting into a dining space.
The front lounge area is quickly transformed into a dining area with a choice of 2 table sizes ideal for both dining and coffee.
WASHROOM

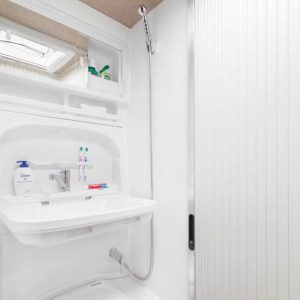

The washroom incorporates a shower, toilet, drop down sink and spacious bathroom cabinet which gives you everything you need for off-grid camping.

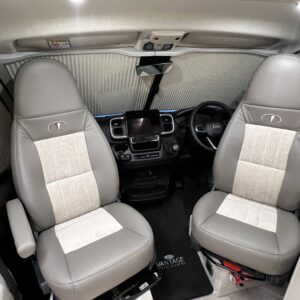

BLINDS & FRONT CAB

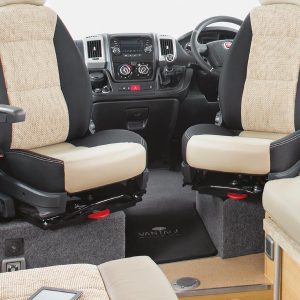

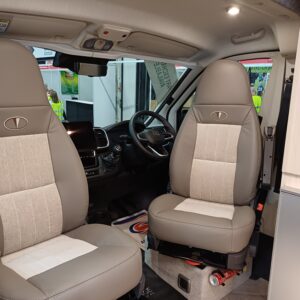

Throughout the vehicle we fit Remis blinds including the cab. Visually impressive with its surrounding frame and pleated material to help you get a better nights sleep. This prevents others from looking in and protects the cab from sunlight. The front Cab seats swivel to create a comfortable dinette.

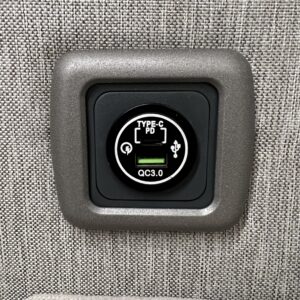

USB / USB-C
The lounge area is equipped with USB/ USB-C points either side for easy access
WARDROBE SPACE

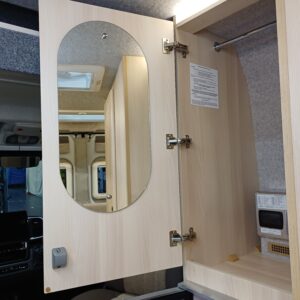

The MED offers large wardrobe storage space and a hanging rail for clothes.
Vehicle Specification
Base Vehicle Specification
Fiat Ducato 2.2 Multijet3 140bhp Manual
Gross Vehicle Weight – 3500Kg Maximum Payload – 600Kg Maximum Towing Weight – 2500Kg
(weights with standard equipment installed the mass in drive ready condition varies with the options fitted)
- Driver & Passenger Airbag
- Height Adjustable Seats
- Armrest & Lumbar Support
- Adjustable Steering Column
- ABS Braking System
- ESC, ASR, MSR & EBA
- Variable Power Steering
- Electric Cab Windows
- Digital Trip Computer
- Remote Central Locking
- Rear Fog Lights Radio
- Inc USB & AUX In
- Immobiliser
- Electric Adjustable Mirrors
- Spare Wheel & Jack
- Sliding Door Rain Guard
- Twin Leaf Suspension
- Manual Cab Air Conditioning
- Cruise Control
- Reversing Sensors
- Keyless Entry & Go
- Electric Parking Brake
- 230V Socket
- Reversing Camera
- Chromed Air Vents
- Leather Steering Wheel
Conversion Specification
- KITCHEN
- 3 Burner Hob & 36L Oven & Grill
- Storage Drawers
- Cutlery Drawer
- Low Energy Fridge Freezer
- Sink, Tap & Drainer Tray
- Laminate Worktop & Splash Back
- Sockets
- DINING
- 1X Table 850mm X 570mm
- 1x Table 480mm Diameter
- Tripod & Pole for Outdoor Use
- STORAGE
- Under Bunk Storage
- Over Cab Storage
- WASHROOM
- Thetford Electric Flush Toilet
- Dropdown Basin & Mono Mixer
- Mixer Shower
- Mirror Storage Cabinet
- Toilet Roll Holder
- Heating Vent Outlet
- EASY-GLIDE BED SYSTEM
- 6’0″ x 4’3″ Double
- FURNISHINGS
- Craftsman Built Cabinetry
- Double Sofa Front Lounge Seating
- Fabric Trimmed Upholstery
- Co-ordinated Scatter cushions
- Deep solid Overhead Lockers
- Blum Motion Locker Doors
- Metal Push-button Positive Catches
- Spacious Wardrobe
- Storage Pockets
- Heavy Duty floor covering
- Removable Carpets
- PLUMBING & HEATING
- 70 Litre Fresh Water Fully Insulated
- 50 Litre Waste Water fully Insulated
- Underslung 25L (10kg) Gas Tank
- Internal Gas Shut Off Switch
- Gas Level Gauge
- Truma CombiNeo Heating & Hot Water
- Premium In-Line Pump
- INSULATION
- Grade 3 Thermal Insulation
- Rear Door Therma-Seal
- ELECTRICAL
- Easy Read Control Panel
- Warm White LED Lights
- Awning Light
- 240V Sockets x3
- Twin USB Port x2
- 1x 200 Amp Lithium Battery
- Electric Step
- 25m Mains Hook up Cable
- WINDOW & ROOFLIGHTS
- Polyvision Double Glazed Windows
- Cab Blinds
- Remis Blinds & Flyscreens
- 1x 700 x 500 Front Heki Rooflight
- Heki Rooflight Blinds & Flyscreens
- SOLAR
- 200W Roof Mounted Solar Panel
- Solar Regulator
- Solar Digital Display Panel
- SAFETY
- Smoke Alarm
- Carbon Monoxide Alarm
- Fire Extinguisher
FROM
£74,995 (OTR)
Optional Packs Information
Primo Pack
10″ radio NAV system, double USB on Dash
Automatic Air conditioning, full 7″ digital cluster, connectivity services, electric adjustable mirrors, digital rear view camera, blind spot assist & rear cross path detection, DRL, fog lights with cornering function, wireless charger, electric parking brake, keyless entry and go, full LED headlamps, 230v socket on dashboard, leather steering wheel, rain and dusk sensors.
Techno Plus Pack
10″ radio NAV AA/CP, Automatic Air Conditioning, connected Services, Double USB Charging, Wireless Charger, Full Digital Cockpit.
Style & visibility Pack
Painted Front Bumper. 16″ alloy wheels, Rain and dusk sensors, High beam Recognition, Fog Lights with cornering function, Full LED Headlamps.
Lithium Kit
2x 300ah lithium units and a 3KW inverter. 60-80amp regen unit and a 30amp lithium mains charger. Full battery monitoring system with colour display and APP.
Vehicle Quotation Calculator
| Select | Base Options | Price |
|---|---|---|
| 8 Speed Automatic Transmission | £2520 | |
| Primo Pack (Details Above) | £4200 | |
| Techno Plus Pack (Details Above) | £1850 | |
| Style & Visibilty Pack (Details Above) | £1620 | |
| CAT 1 Alarm | £525 | |
| Combined Alarm & Tracker (+Subs) | £685 | |
| Tracker Only CAT 6/S7 | £425 | |
| Front & Rear Mudflaps | £210 | |
| White | £0 | |
| Expedition Grey | £960 | |
| Black | £960 | |
| Lanzarote Grey | £960 | |
| Artense Grey | £960 | |
| Iron Grey | £960 |
| Select | Leisure Options | Price |
|---|---|---|
| Fixed Rear Pod | £5995 | |
| Hartal Door | £6995 | |
| Full Leather Upholstery | £2575 | |
| Leather Trimmed Upholstery | £1045 | |
| Shorewood & Cashmere Door Pack | £795 | |
| All Acacia Doors | £0 | |
| All Shorewood Doors(in conjunction with shorewood door pack) | £0 | |
| Fiamma F80s 3.2m Awning | £1000 | |
| External BBQ | £375 | |
| Rear Mounted Bike Rack | £595 | |
| Tow Bar | £795 | |
| Truma Aventa Compact Air Con | £2950 | |
| Cool Air 3 Speed Fan | £295 | |
| Avtex Soundbar | £195 | |
| 24" Avtex Smart TV | £750 | |
| TV Aerial & Booster | £295 |
| Select | Leisure Options | Price |
|---|---|---|
| High Gloss Paint Glaze | £295 | |
| Upholstery Guard | £195 | |
| Flyscreen for Sliding Door | £950 | |
| Shower Room Turbo Vent | £375 | |
| Fresh Water Tank Heating Element | £350 | |
| Reading Lights | £250 | |
| Ext Warranty,3,4,5 years | £1045 | |
| Additional Mains Socket | £120 | |
| External 12v Socket | £160 | |
| External TV/sat Socket | £160 | |
| External Thermal Screens | £250 | |
| Heki 3 Plus Rooflight 950x640 | £650 | |
| 5G Ready WiFi | £750 | |
| Microwave | £595 | |
| 115 Ltr Fridge | £395 | |
| Truma Diesel Combi Boiler (replace STD combi) | £500 | |
| Webasto Diesel Heater (addition to STD boiler) | £1500 | |
| 2 Burner Induction hob & Microwave | £500 | |
| Lithium Kit (see above for details) | £5500 |
